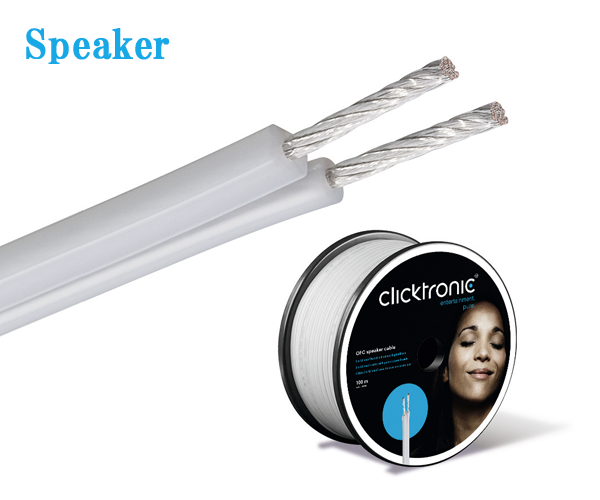

OFC speaker cable
- No.52805 - 1.00 ～ 10.00m
OFCスピーカーケーブルは、非常に純度の高い銅線を使用したスタンダードなスピーカーケーブルです。 4mmの芯線は極細な状態の銅線を強堅に編込み、ハイクオリティサウンドをHi-Fiシステムへ提供します。
Connectors |
|
|---|---|
| Port 1, type | open cable end |
| Port 2, type | open cable end |
Cable |
|
| Type | 2 x Round cable |
| Length (m) | 100 |
| Inner conductor material | OFC (Oxygen free copper) |
| Inner conductor diameter (mm) |
3 x 238 Adern x 0.115 (2 x 2,5) 2 x 385 Adern x 0.115 (2 x 4.0) |
| AWG | 13 11 |
| Outer sheath material | highly elastic PVC |
| Outer sheath diameter (mm) | 5.0 x 10.0 6.0 x 12.0 |
Signal transmission |
|
| Transmission modes | digital and analog audio signals |
| supported audio standards | Stereo audio |
| other supported standards | Positive polarity identification with squared cable sheath |
| Capacitance (pF) | 69.7 61.6 |
| Characteristic impedance (Ω) | 7.4 4.5 |
| Insulation resistance (MΩ/km) | 0.18 0.2 |
General |
|
| Weight (kg) | 12.2 18.3 |
| Operating temperature from / to (℃) | -20 / +60 |
| Warranty (years) | 10 |
