正確なデータ伝送率と効率性を最大に引き出すオプティカルデジタルケーブル。
非常に高度で精密なメタルコネクターを使用し、安定的でフィット感のある接続環境を実現。
まるでクリスタルのような美しく、ピュアな3次元サウンドを経験することが可能です。

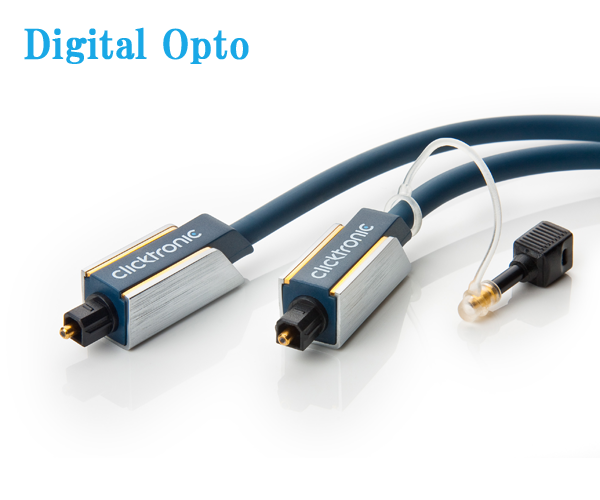

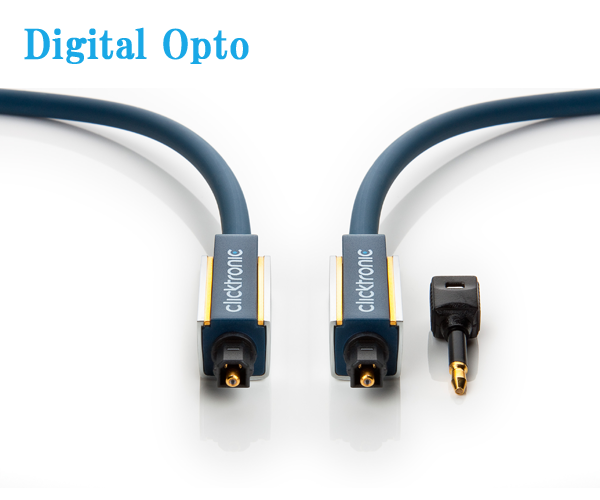

一般的なToslinkコネクターだけでなく、付属の3.5mmジャック用変換アダプターを利用して、ミニジャック光デジタル出力に対応した、様々なモバイル機器やノートパソコンなどにも使用することが可能です。
Connectors |
|
---|---|
Plug material | High precision full metal |

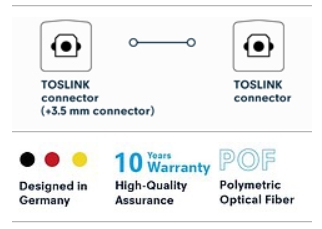

Port 1, type | TOSLINK connector / 3.5 mm connector |
Connector 1, connector length (mm) | 39.8 |
Connector 1, connector width (mm) | 14 |
Connector 1, connector height (mm) | 14 |
Port 2, type | TOSLINK connector |
Connector 2, connector length (mm) | 39.8 |
Connector 2, connector width (mm) | 14 |
Connector 2, connector height (mm) | 14 |
Cable |
|
Type | Round cable |
Length (m) | 0.50-1.00-2.00-3.00-5.00-7.50-10.00-15.00-20.00 |
Inner conductor material | POF (Polymer Optical Fiber) |
Inner conductor diameter (mm) | 1 x 1,000 |
Outer sheath material | highly elastic PVC |
Outer sheath diameter (mm) | 6 |
Kink protection | on both sides |
Signal transmission |
|
Transmission modes | digital audio signals |
supported audio standards | Dolby Digital/Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD-Audio, SA-CD |
General |
|
Operating temperature from / to (℃) | -10 / +80 |
Warranty (years) | 10 |
