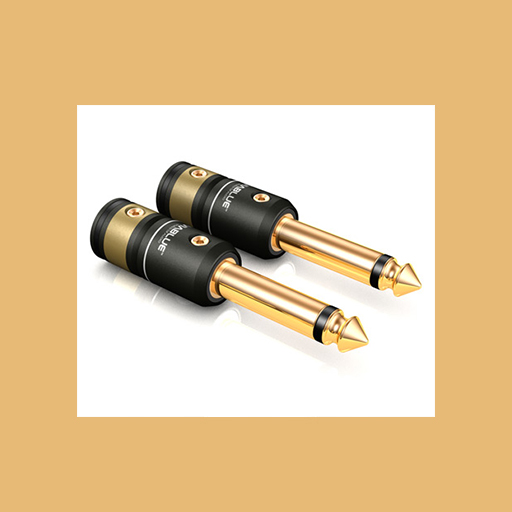

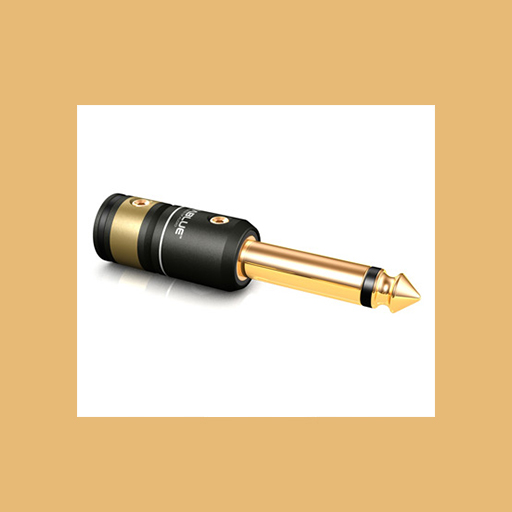

T6S AUDIO PLUGS 6.3 MM MONO
High-end plug connection
• 24 carat real gold-plated
• Outer shell made of black, satin-matt aluminum
• Strain relief for cable Ø 4 - 9.5 mm
• Strain relief provided by one M4-hexagon socket screw 1.5 mm
Additional features
• 2 diameter decreasers to comfortably adjust to various cable diameters • Ideally supports larger size AF-cables, e.g. VIABLUE™ NF-S1 Quattro Silver Analogue
Assembly instructions
For cable assembly, contacts can be completely separated from their shell.
Stripped cable ends are soldered on the contact piece.

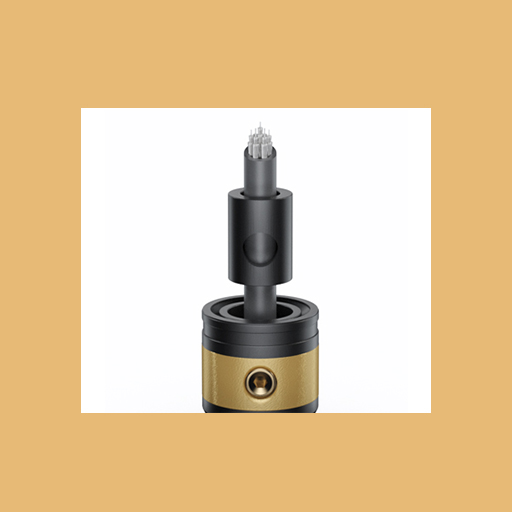

Diameter Decreaser
Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly.
TECHNICAL SPECIFICATIONS
• T6S 6.3 MM MONO
• Audio connectors
• Ø 13.5 mm
• Shell length 30.5 mm
• For cable Ø 4 - 9.5 mm
• Inner Ø soldering tub 1.5 mm
