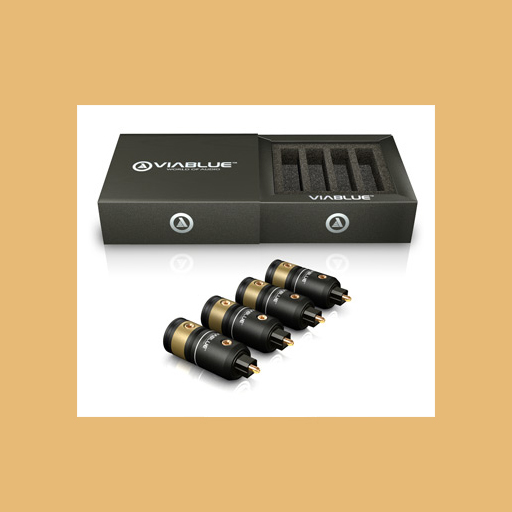

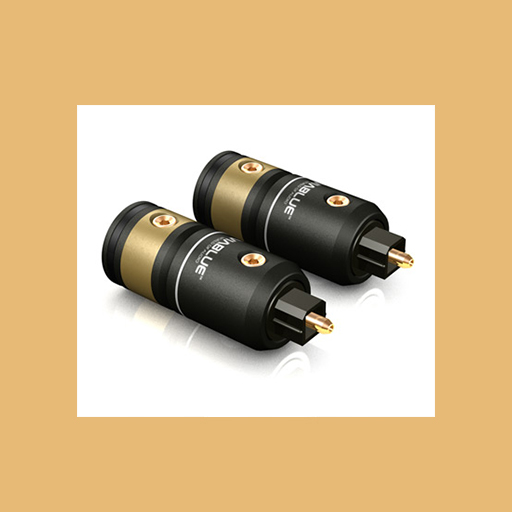

T6S TOSLINK PLUGS
High-end plug connection
• Secure and stable guidance of optical fibers through the contact pin
• 24 carat real gold-plated
• Outer shell made of black, satin-matt aluminum
• Strain relief for cable Ø 4 - 9.5 mm
• Strain relief provided by one M4-hexagon socket screw 1.5 mm
Additional features
• 2 diameter decreasers to comfortably adjust to various cable diameters
Assembly instructions

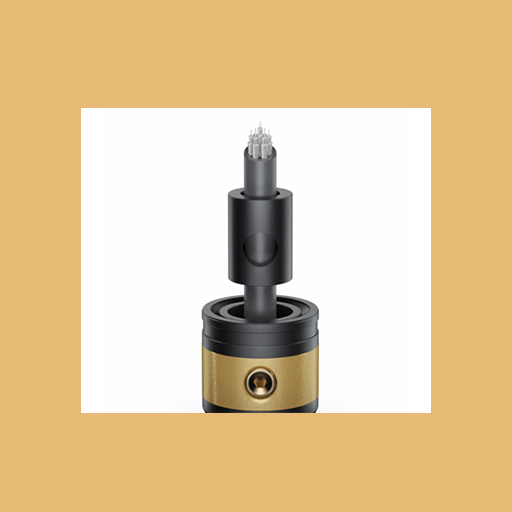

Cable ends of fiber-optic cables are stripped off their insulation and
inserted in the core of the plug. The core remains in the shell.
The strain relief screws are then tightened and the fiber-optic cable
is wet-grinded and polished to finish.
Diameter Decreaser
Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly
TECHNICAL SPECIFICATIONS
• T6S TOSLINK
• Toslink connectors
• Ø 13.5 mm
• Shell length 30.5 mm
• Cable input Ø 4 - 9,5 mm
• Pin for optical fiber Ø 1 mm
